ULTRA-SLIM, LIGHT-WEIGHT, POWERFUL ILLUMINATION
SKINNYLIGHT® pioneered the original ultra-slim work-light concept with the launch of its groundbreaking 6 mm corded LED slim bar light in Japan in 2007.

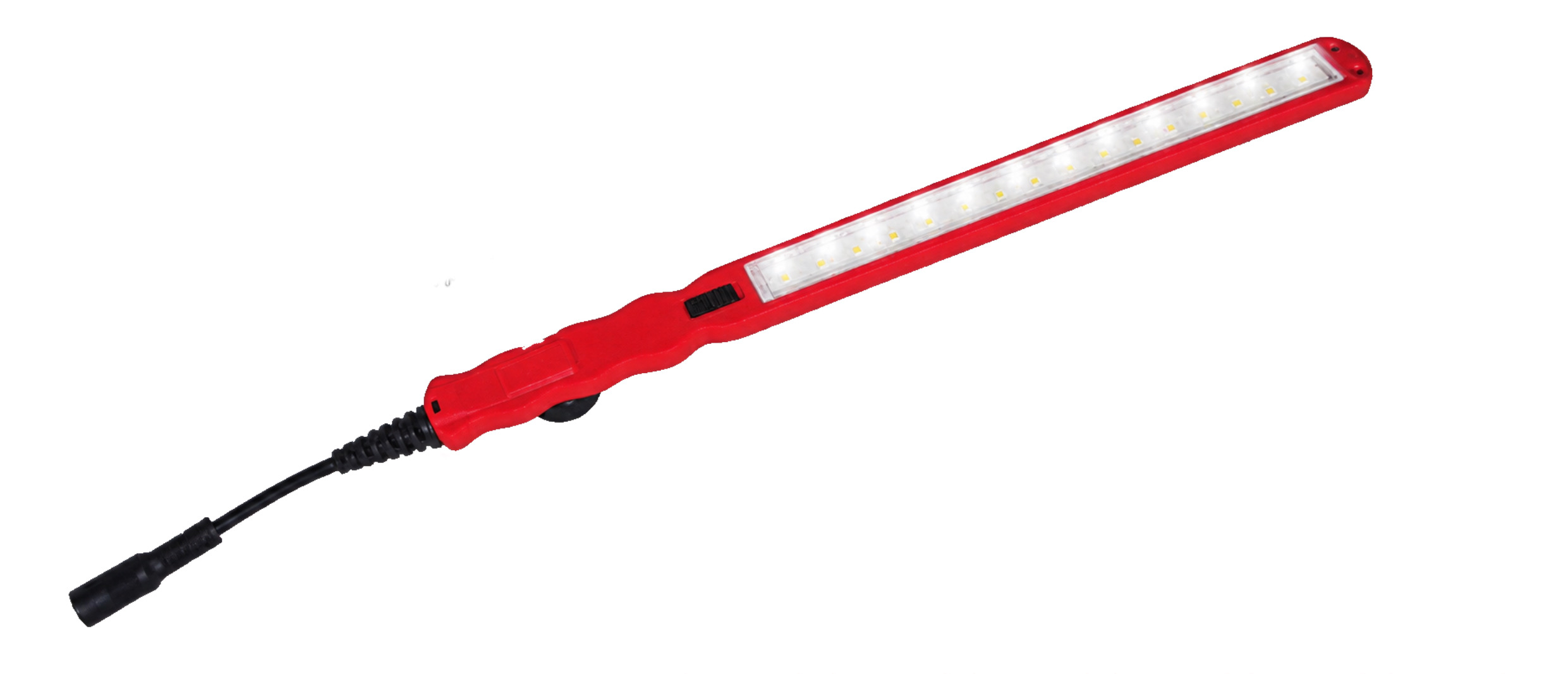

Despite its 6 mm construction, SLW exceptionally slim profile reaches deep into tight, narrow and difficult-to-access work areas where conventional work lights cannot fit. It delivers up to 500 lumens, providing sufficient illumination for a work area of approximately 2 m². Structurally, it is extremely tough (nearly indestructible) and allows a limited degree of twisting and bending during use. The standard 12 V DC system includes an AC/DC adapter and a 5 m power cord, providing sufficient reach along the full length of most vehicles. A rubber-sleeved, threaded magnetic mount enables secure, hands-free illumination on metal surfaces.

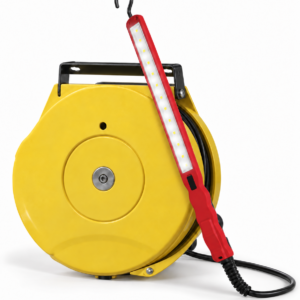

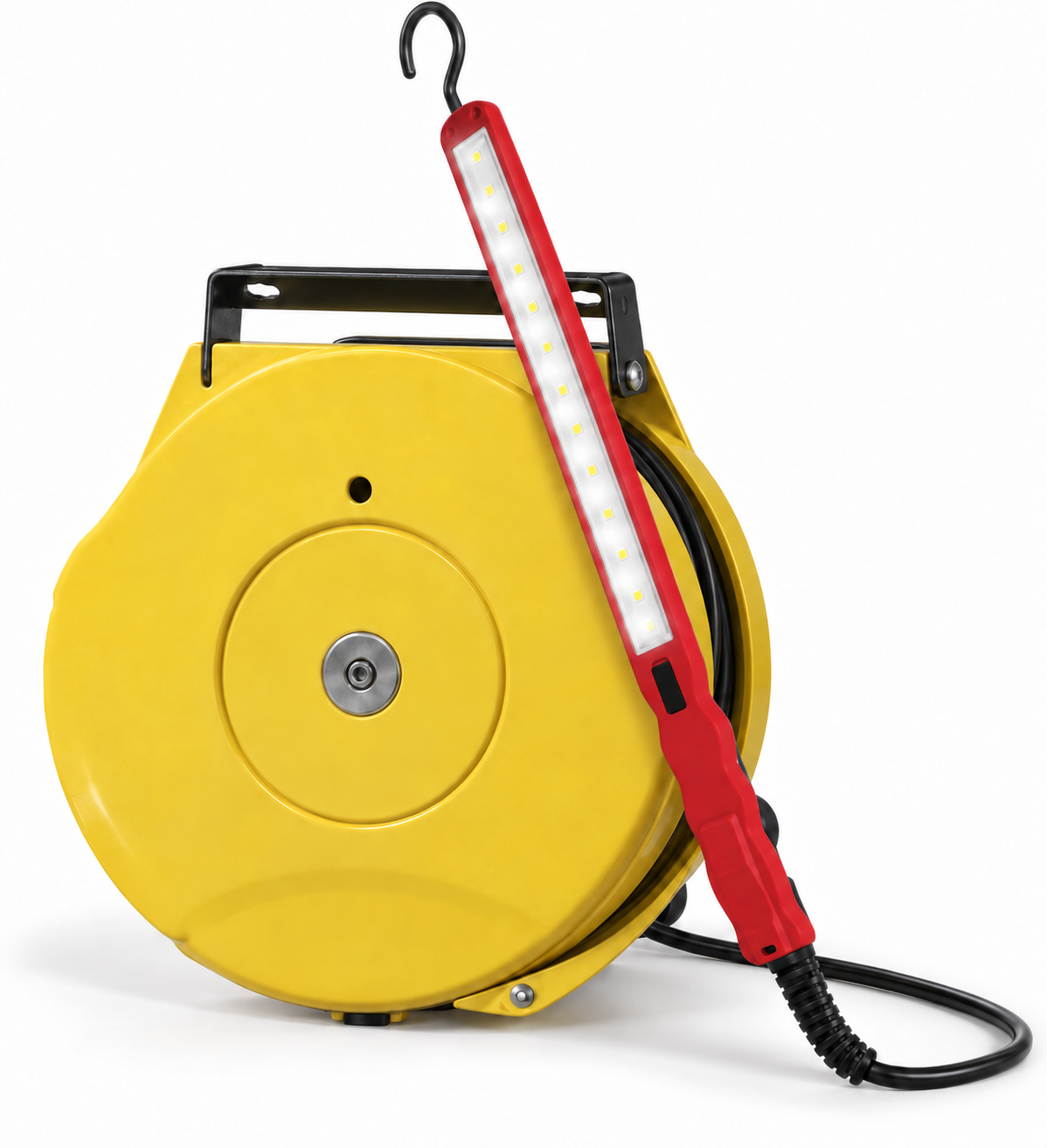

Additional connectivity options include a 48 V SELV adapter, retractable extension cord reel, crocodile-clip cable, vehicle cigarette-lighter adapter, and the P-Fusion portable battery power unit for remote operation.

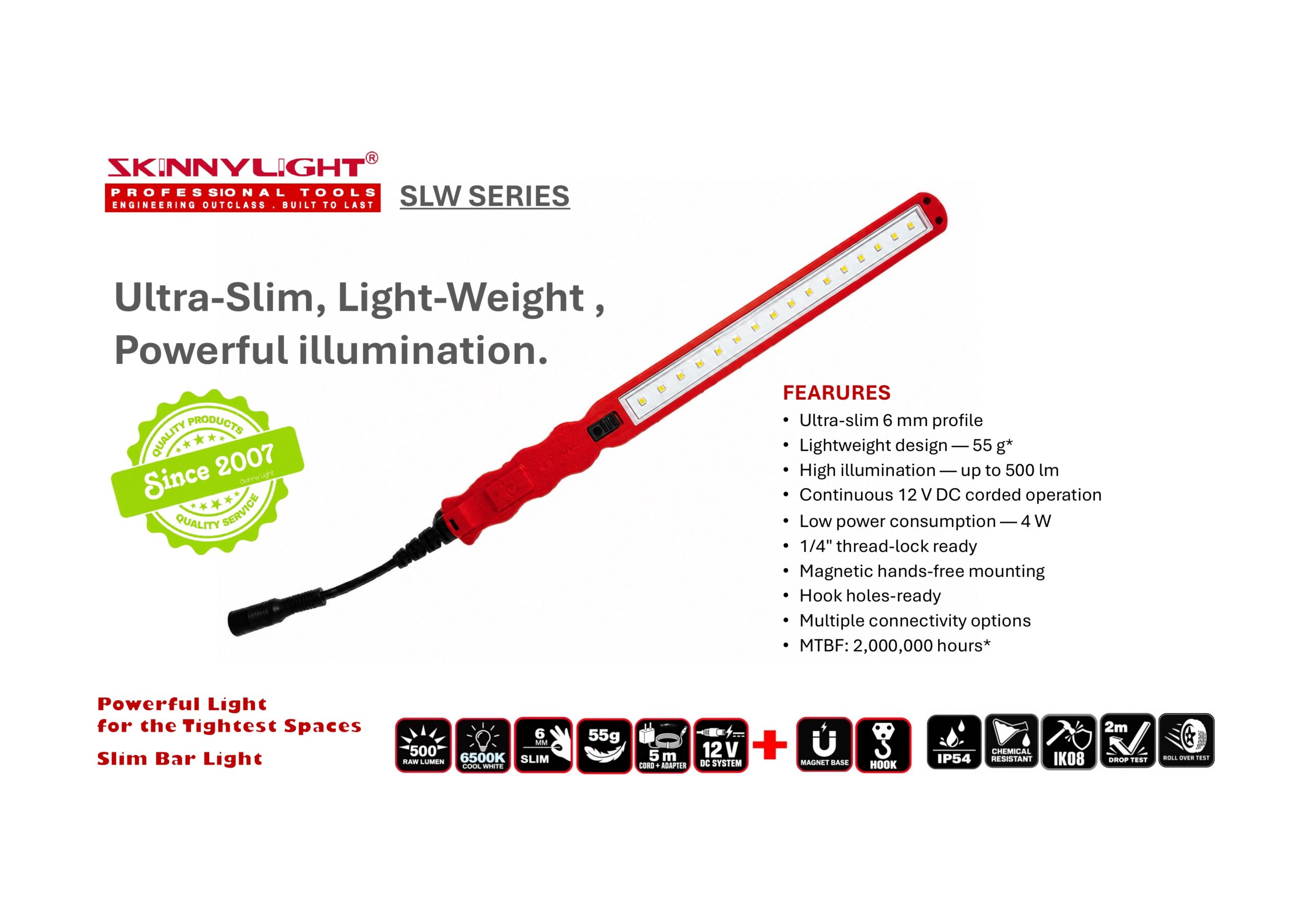

FEATURES
- Ultra-slim 6 mm profile
- Lightweight design — 55 g*
- High illumination — up to 500 lm
- Continuous 12 V DC corded operation
- Low power consumption — 4 W
- 1/4″ thread-lock ready
- Magnetic hands-free mounting
- Hook holes-ready
- Multiple connectivity options
- MTBF: 2,000,000 hours*
SPECIFICATION
| Model SKU | SLW series |
| Intensity raw | 500 Lumen |
| Illumination | Approx. 500 lux @ 0.5 m |
| CCT / CRI / Beam Angle |
6500K (optional: 5200K) / Ra > 90 (cool white) / Wide 120° |
| Electrical System | 12 Vdc 5m extension Power Cord with ADC Adapter |
| Operating Condition | -20 to 60 °C IP54 |
| Dimensions | L 305 × W 25 × T 6 mm |
| Weight | Approx. 55 g |
| Hands-Free Mounting | 1/4-inch screw mount magnet (Optional: Hook) |
| Compliance | CE / RoHS* |
*The information in this document is subject to change without notice
